RESTHost - Working with inputs

When a request is received by Linx, input data is passed in to the operation via:

Input Parameters
- Path
- Query
- Headers and Cookies
Request Body
- Simple
- Object
- File

These inputs are deserialized into the appropriate Type to use when building custom logic.

Like any other Type, the inputs from a request are accessible for selection in the Properties of A Function, Service or Event.

The following sections describe how to handle each type of request input and the typical usage of each.

Input Parameters

Input parameters are divided into the following types based on the parameter location:

Path
Query
Header and Cookie

Path

Path parameters are variable parts of the request URL.

/users/{id}

These are typically used to point to a specific resource such as a user’s id in the example above.

There can also be multiple path parameters such as:

/users/{id}/task/{taskID}

When the API Definition specifies that there are path parameters, these will be deserialized into the appropriate type to use in the drop-down selectors in the Designer.

For example, the below method take’s in an id value passed in with the request URL.

paths: /resource/{id}: get: summary: Retrieve the details of specific resource. description: Retrieve the details of specific resource. operationId: GetSpecificResource parameters: - name: id in: path description: id required: true schema: type: string

paths:
  /resource/{id}:
    get:
      summary: Retrieve the details of specific resource.
      description: Retrieve the details of specific resource.
      operationId: GetSpecificResource
      parameters:
        - name: id
          in: path
          description: id
          required: true
          schema:
            type: string

When a request is made, the URL will look like the below:

https://linxdemo.net:8080/resource/27TAHSS737DCHJ

This id parameter is then accessible from the $.Parameters.id of the operation.

Linx Designer View:

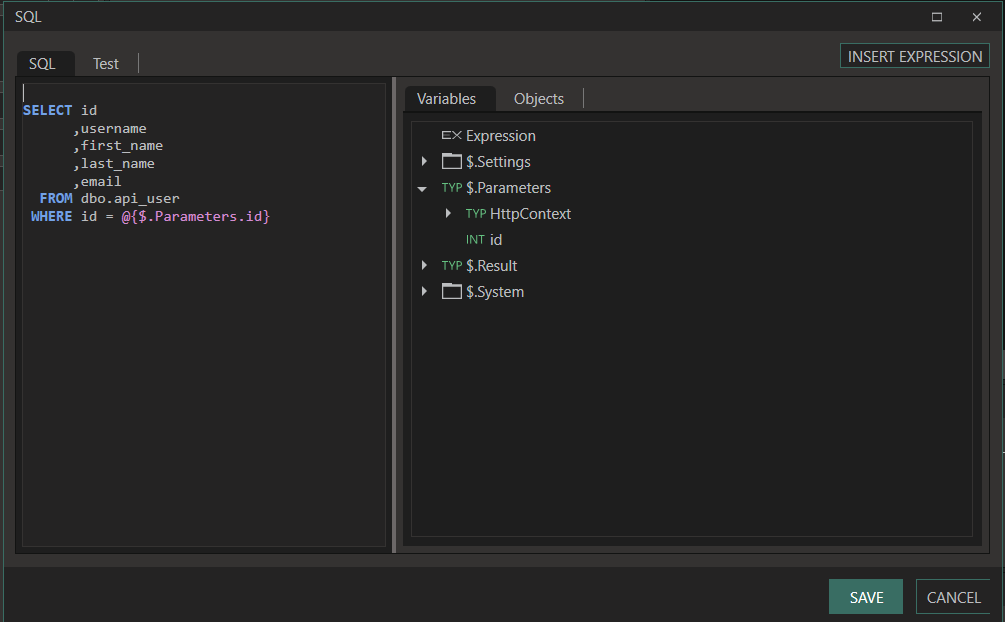

In the below example, the path parameter id is used to query a specific resource from the database using an ExecuteSQL function:

Query

Query parameters are the most common of parameter types. These are passed in as part of the query string which appears at the end of the request URL.

/users?role=admin&user=Mark

When the API definition specifies that there are query parameters, these will be deserialized into the appropriate type and will be accessible within the operation to build custom logic with.

For example, the below operation takes in an email and name parameter values passed in the query string of the request URL.

/users:
    get:
      summary: List users
      description: List users
      operationId: QueryUsers
      parameters:
        - name: name
          in: query
          description: User full name
          schema:
            type: string
        - name: email
          in: query
          description: User email address
          schema:
            type: string

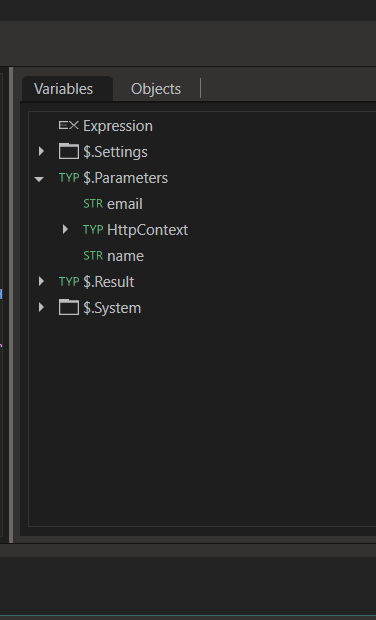

The name and email parameters are then accessible from the $.Parameters of the operation which can be used to do custom processing.

Linx Designer View:

In the below example, the query parameter name is used to query matching resources from the database using an ExecuteSQL function:

Header and Cookies

Header and Cookie parameters can also be used, although typically these would rather be used for authentication purposes and any parameters passed in would be with the Query or Path.

If you explicitly state these objects in the API Definition then they will be available in the $.Parameters of the operation.

If you would like to access other header values, then you will need to build custom logic to extract the desired values.

Request Body

The request body is defined by the API definition; this can either be simple types such as STR, INT, LST or objects which contain nested types and other objects.

Simple Type

The request body of an operation can contain a single type or field such as a STR type, typically however, you would use a object to hold more information for the request body.

To use a simple type as the request body, add the request body definition to the path in the API Definition like below:

requestBody:
        content:
          text/plain:
            schema:
              type: string

This value will be available in the operation’s $.Parameters.body to use in the operation.

Object

If you have described your request body as an object in the API Definition, the values will be parsed from the request into a Type. This Type and its values will be accessible in the `$.Parameters.body to use in the operation.

In the below example, the /users endpoint receives a user object consisting of multiple fields as the request body.

/users:
    post:
      operationId: CreateUser
      requestBody:
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/NewUser'
        description: Details of the new user to register
        required: true
...
  schemas:
    NewUser:
      type: object
      properties:
        username:
          type: string
        email:
          type: string
        password:
          type: string
          format: password
        firstname:
          type: string
        lastname:
          type: string
      required:
        - username
          email
          password
          firstname
          lastname

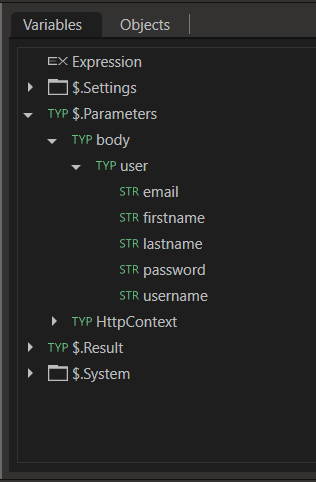

These values are then accessible in the operation to build custom logic with.

Linx Designer View:

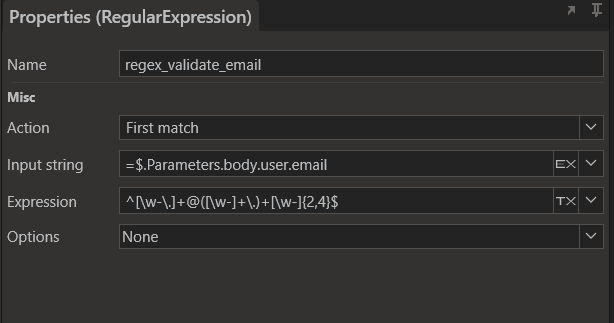

In the below example, the input email field of the User submitted as the request body is validated using a RegularExpression function.

File Object

In order to recieve files in a binary format, you must described your request body as a binary object in the API Definition, the values will be parsed from the request into a LST type. This LST type and its values will be accessible in the $.Parameters.body to use in the operation.

In the below example, the /users endpoint receives a binary content request body containing the contents of a file.

/users:
    put:
      summary: send file
      description: Upload profile picture
      operationId: UploadPhoto
      requestBody:
          content:
            application/octet-stream:    # Can be image/png, image/svg, image/gif, etc.
              schema:
                type: string
                format: binary
          required: true

In order to write the contents of the file out to a drive, you must use the BinaryFileWrite function.
