# Connection Editor

The connection string specifies the configuration values required to connect to the database. The content of the connection string depends on the database driver used.

To access the **Connection Editor**, click on the **...** icon.

{% hint style="info" %}
Note:

The Connection Editor helps build the connection string by offering a form that contains by default the most common connection properties for the selected connection type.

* You are able to update the composition of this form by changing the default property names, or adding and deleting properties.
* You can also paste a connection string into the Connection string property field before opening the Connection Editor. The form will then display the fields and values that are contained in the connection string.
  {% endhint %}

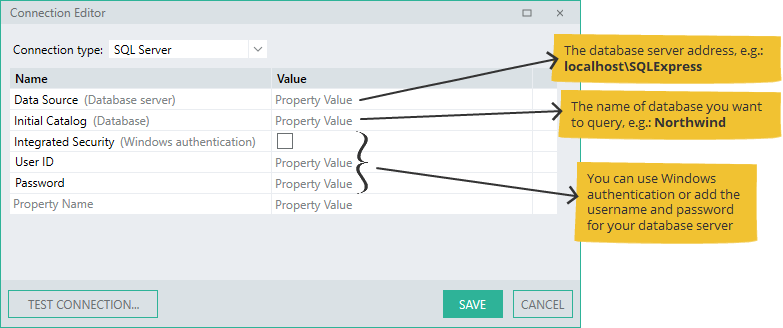

A typical form looks like this:

<figure><img src="/files/geBDfDihecmJFRlLzTlN" alt="Connection Editor"><figcaption></figcaption></figure>

Once you have set up a connection to your database, you can create and execute your own SQL queries. Go [here](/reference/plugins/database/shared-properties/sql-editor.md) for details on **SQL Editor**.

***

## Examples of connections

### SQL Server

* **Not named, Windows authentication**

> Data \[Source=*serverAddress*;Initial Catalog=*databaseName*;Integrated Security=True;]

* **Named server, no Windows authentication**

> Data Source=*serverName\instanceName*;Initial Catalog=*databaseName*;Integrated Security=;User ID=*username*;Password=*password*;

Example string:

`Data Source=JOHNC\SQLSERVER2016;Initial Catalog=employees;Integrated Security=False;User ID=sa;Password=myexamplepwd123`

{% hint style="info" %}
Note:

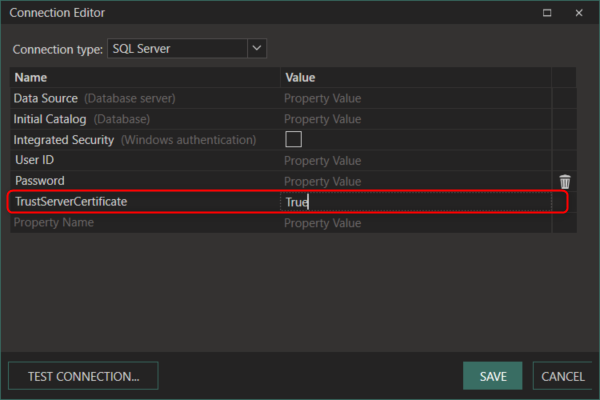

When using an alias in your connection string and the DB server does not have a certificate, you have to add the TrustServerCertificate property and set it to 'True' to avoid errors.

<img src="/files/VzAXcPzSY7yDlnP9YtCc" alt="" data-size="original">
{% endhint %}

### Oracle

* **Using TNS-names entry**

> Data Source=*TNSname*;User ID=*username*;Password=*password*;

* **Without using TNS-names entry**

> Data Source=(DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=*serverAddress*)(PORT=*port*))(CONNECT\_DATA=(SERVER=DEDICATED)(SERVICE\_NAME=*serviceName*)));User ID=*username*;Password=*password*;

### OLE DB

* **Windows authentication**

> Provider=sqloledb;Data Source=\_serverAddress\_;Initial Catalog=\_databaseName\_;Integrated Security=SSPI;

* **No Windows authentication**

> Provider=sqloledb;Data Source=\_serverAddress\_;Initial Catalog=\_databaseName\_;Integrated Security=;User ID=\_username\_;Password=\_password\_;

### ODBC

* **Microsoft Access database**

`Driver={Microsoft Access Driver (\*.mdb)};DBQ=_databaseFilePath_;`

* **System Data Source Name, Windows authentication** `DSN=_dataSourceName_;Trusted\_Connection=Yes;`
* **System Data Source Name, no Windows authentication** `DSN=_dataSourceName_;Uid=_username_;Pwd=_Password_;`

## Examples f ODBC connections to databases on cloud servers

Note: The *DSN* property is not used when connecting to a database on a cloud server.

### MySQL

`Uid=root;Pwd= password;Driver={MySQL ODBC 8.0 ANSI Driver};Server=localhost;Database=myDatabase;`

<figure><img src="/files/5p8EEReL7D1lITqHpZ8u" alt="mySQL"><figcaption></figcaption></figure>

### PostgreSQL

`Uid=postgres;Pwd=password;Driver={PostgreSQL ANSI(x64)};Server=localhost;Database=myDatabase;`

<figure><img src="/files/rCt0NfpBPQQAvWlhn6LP" alt="postgres"><figcaption></figcaption></figure>

### SQLite

`Driver={SQLite3 ODBC Driver};Database=F:\myDatabase.db;`

<figure><img src="/files/qiK4Pg47y6YBwUCDY0Af" alt="SQLite"><figcaption></figcaption></figure>

***

## Links

**Connection strings**

* [Wikipedia: Connection string](http://en.wikipedia.org/wiki/Connection_string)
* [The Connection Strings Reference](http://www.connectionstrings.com/)

**ODBC**

* [Wikipedia: ODBC](http://en.wikipedia.org/wiki/Open_Database_Connectivity)
* [MSDN: ODBC connection string](https://msdn.microsoft.com/en-us/library/windows/desktop/ms722656\(v=vs.85\).aspx)


---
