REST Overview Guide

Warning: The steps provided in this explanation are based on Linx before release 6.4.0.

In Linx 6.4.0 and higher there is a Return function in the Linx plugin that must be used for setting the value of a function's result. The SetValue function and $.Result cannot be used for this purpose anymore.

Go here for details of the Return function.

The following sections cover a general overview of hosting and implementing REST web services in Linx with the use of the RESTHost function.

• The flow of a REST request

• The data structure of REST request in Linx

• Supported HTTP status codes

• Supported Media Types

---

REST Request Flow

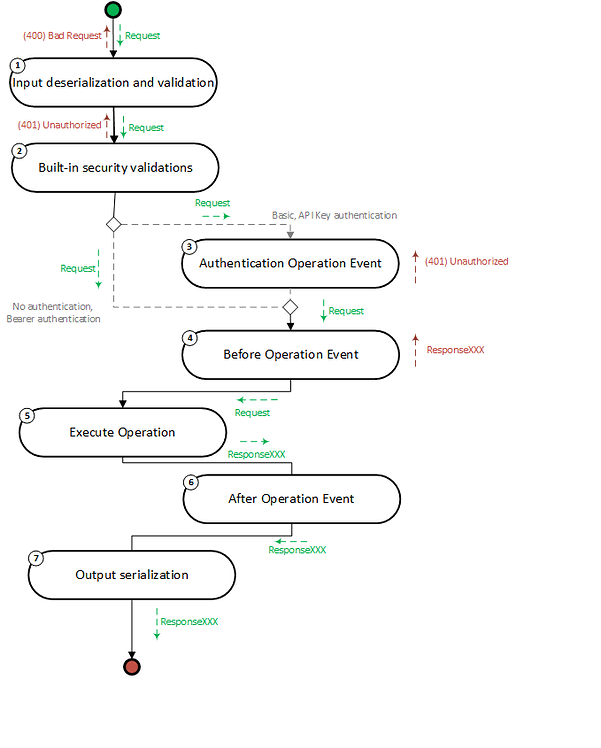

When a request is made to a RESTHost service operation, the following flow takes place:

Steps

1. Input deserialization and validation: After a request is received, Linx performs deserialization and validation of the inputs (query string, request body).

2. Built-in security validations: Linx then executes built-in .NET security validations according to the operation's applied HTTP security scheme (Basic, Bearer or API Key).

3. Authentication event: Authentication event which is executed for Basic and API Key authentication. This allows you to add custom authentication logic for these schemes.

4. Before operation event: Optional event which allows you to add custom logic to requests, before the operation is executed.

5. Execute operation: Executes the operation in which the custom logic for the endpoint is built.

6. After operation event: Optional event which allows you to add custom logic to requests, after the operation has been executed, regardless of success.

7. Output serialization: Serialization of the outputs returned from the operation.

8. Error handler: The whole flow is encapsulated in a built-in error handler.

Input Deserialization and Validation

After a request is received, the incoming request's parameters, such as the request body or query values, are deserialized and then validated according to the API definition.

If a validation error occurs, a 400 Bad Request response is returned along with a response body that contains the details of the invalid parameters.

Built-in Security Validations

Linx then executes built-in .NET security validations according to the operation's applied HTTP security scheme.

Currently, the RESTHost service supports the following built-in security schemes:

• HTTP Basic

• HTTP Bearer

• API Key

When a request is made to an operation that has one of the above security schemes applied to it, the following will happen:

Validation of Authentication Parameters

• Basic and API Key: Validate format (in header, in query etc.)

• Bearer: Automatically verify JWT token

If unsuccessful, a 401 Unauthorized response is returned.

If successful, details associated with the authenticated user are passed through to the operation via:

• For HTTP Basic and API Key security schemes, details are passed through to the operation in AuthenticationData.

• For the HTTP Bearer security scheme, details are passed through to the operation in HTTPContext.User.

Authentication Event

OperationEvents_Authenticate

The authentication event is executed for HTTP Basic and API Key authentication schemes. You must add custom authentication logic in this event to handle the verification of Basic and API Key authentication credentials. An example of such logic would be confirming the validity of a API Key from a database.

By default, this event returns $.Result.Data.HttpContext.User.IsAuthenticated = False, so you must add logic in this event to indicate that authentication was successful. If authentication fails, a 401 Unauthorized response is returned.

Before Operation Event

OperationEvents_BeforeOperation

You can add custom logic to this event, which will execute before the operation is executed. This applies to all operations and can be used for things such as custom logging, throttling, or additional custom authentication.

Execute Operation

The operation that contains your custom logic is executed once all necessary validations have occurred.

By default, all operations are set to have a default response of 200 OK. If you want to return a different HTTP status code, such as 201 or 402, you can by setting a custom response.

After Operation Event

OperationEvents_AfterOperation

You can add custom logic to this event, which will fire after any operation has executed, regardless of the result.

Output Serialization

The outgoing response properties are deserialized according to the API specification.

Error Handler

The whole flow is encapsulated in a built-in error handler. If an error occurs at any stage in the flow, a 500 Internal Server Error will be returned. You have the option of including or omitting error details from the response by altering the Return server errors of the RESTHost service to True.

---

Structure of Linx REST Request

When a request is received or a response is returned, it is structured as follows:

Data

Highest-level request/response object.

Data	Type	Included in
HTTPContext	httpContext	Requests/Responses
AuthenticationData	authenticationData	Requests with security events
Input Parameters	inputParameter	Requests
ResponseXXX	responseXXX	Responses

HTTPContext

Object containing all metadata and additional information associated with the request.

HTTPContext	Type	Example
Connection	connection
ContentLength	Integer	12322
ContentType	String	Application/json
Cookies	List	x-api-key=aadedwde
Headers	List
Host	String	localhost
IsHttps	Boolean	true
Items	List	['User1','User2']
Method	String	GET
Path	String	/users
PathBase	String	/LinxSampleAPI/restHOST
Protocol	String	HTTP/2
Query	List
QueryString	String	?x-api-key= xsdshsdj37sh
Scheme	String	https
User	user

Connection

Connection details associated with the source of the request.

Connection	Type	Example
ID	String	-485183435770848
LocalIpAddress	String	::1
LocalPort	Integer	443
RemoteIpAddress	String	::1
RemotePort	String	55023

Header

Headers are used to pass additional information with the request. Typical usage involves the Authorization header used for authentication schemes such as Basic, Bearer or API Key.

Header	Type	Example
Key	String	Authorization
Value	List<String>	Bearer Xhsjjs73890s0

Query

Query values are used to pass additional information usually related to the request such as a filter value.

These are passed in with the HTTPContext.QueryString of the request URL, they are then deserialized into the following format:

Query	Type	Example
Key	String	x-api-key
Value	List<String>	['xsdshsdj37sh']

User

Contains information related to the authenticated user from the built-in security validations as well as from the OperationEvents_Authenticate event.

You are able to alter this property in order to pass data through to the subsequent events and operations.

An example of this could be if you validate an API key with custom logic in the OperationEvents_Authenticate event by matching the key to a user, you can then return the user’s id from the database which can be passed on to the main operation. This avoids re-extracting the identifiers that might be of use in the operation.

For the HTTP Bearer authentication scheme, the unique_name claim value is extracted from the JWT token and passed in with the User.Name property.

User	Type	Example
AuthenticationType	String	2
IsAuthenticated	Boolean	true
Name	String	2233

Input Parameters

When parameters are passed in with a request in either the request URL, query string or request body, they are deserialized and accessible in the $.Input.Data property of the operation and events:

Input Parameter	Type	Example
URL parameters	String	/users/45
Query values	String	Name=John
Header values	String	Name=John
Cookies	String	Name=John
Request Body	Text/XML/JSON/Filestream/URL Encoded	{"user": {"name": "John"}}

ResponseXXX

By default, when an operation completes, a (200) OK response status code with a response body of no-content is returned. However, you are also able to return custom response codes as well as custom response content which can be basic types or objects containing nested types and objects.

Output	Type
Response Body	JSON/XML/Binary

AuthenticationData

When the built-in security validations have succeeded, details relating to the authenticated user will be passed on to any operations and events down the request flow.

AuthenticationData	Type	Example
SchemeName	String	BasicAuth
SchemeType	schemetype	1
ApiKey	String	ApiKey

APIKey

The API Key object will contain the below information if the security scheme for the operation is API Key. If the authentication is HTTP Basic, then this object will be NULL.

ApiKey	Type	Example
TokenLocation	tokenLocation	2
TokenName	String	X-API-KEY
ProvidedToken	String	0imfnc8mVLWwsAawjYr4Rx-Af50DDqtlx

---

HTTP Status Code Support

General Status Code Support

The following HTTP Status Codes are supported in the RESTHost operation responses.

Built-in

Status Code	Phrase	Use
200	OK	Default response code for all operations unless set otherwise.
401	Unauthorized	Default response code for security validation failures or authentication failures.
400	Bad Request	Default response for incorrect structure of request.
415	Unsupported Media Type	Default response for unsupported media in the content-type header.
500	Internal Server Error	Default response code when an unhandled exception occurs in the request flow. Users are able to include or omit the server errors from the response.

Custom

Status Code	Phrase	Use
1XX	Informational	Custom Response
2XX	Success	Custom Response
3XX	Redirection	Custom Response
4XX	Client Error	Custom Response
5XX	Server Error	Custom Response

Operation/Event Response Codes

Security validations

In the case of invalid authentication credentials or submission format, a (401) Unauthorized response is returned.

Before Operation event

If you alter the $.Result.Data.HTTPContext.StatusCode to anything (even 200) within this event’s custom logic, a response with the code will be returned and the request flow will cease.

Authentication event

The OperationEvents_Authenticate event is set by default to return a result value of $.Result.Data.HtttpContext.User.IsAuthenticated which triggers a (401) Unauthorized response.

Therefore, you must add custom logic in this event to set the value of $.Result.Data.HtttpContext.User.IsAuthenticated in the case of HTTP Basic and API Key security schemes.

Execute Operation

By default, all operations have a response Status Code of (200) OK unless set otherwise or an exception is thrown within the operation’s logic; in that case, a (500) Internal Server Error is returned.

If you want to return a custom response code like 201 or 404, then you are also able to configure it in your operation logic. This is done by adding the relevant HTTP Response Codes to your API definition, and then setting the $.Result.Data.HTTPContext.StatusCode property within the operation to the code you require. Following this, you can set the relevant response body.

After Operation event

You are able to override the HTTPContext.StatusCode of the operation in this event; you are able to set it as any response code.

---

Supported Media Types

Input parameters are deserialized into the relevant TYP.

The following data/media types are supported in requests:

Input Data Type	Location	Accepted Content-Type Header
Basic Data Type (integer, string etc)	URL, Query, Body	- application/json - text - application/xml
Object, List	Body	- application/json - application/xml
Binary / Filestream	Body	- application/octet-stream

If you attempt to make a request with an incorrect content-type header or an unsupported content-type, then a (415) Unsupported Media Type response will be returned automatically.

Warning:

The steps provided in this explanation are based on Linx before release 6.4.0.

In Linx 6.4.0 and higher there is a Return function in the Linx plugin that must be used for setting the value of a function's result. The SetValue function and $.Result cannot be used for this purpose anymore.

Go here for details of the Return function.
