# ConnectionEditor

The connection string specifies the configuration values required to connect to the SQLite database.

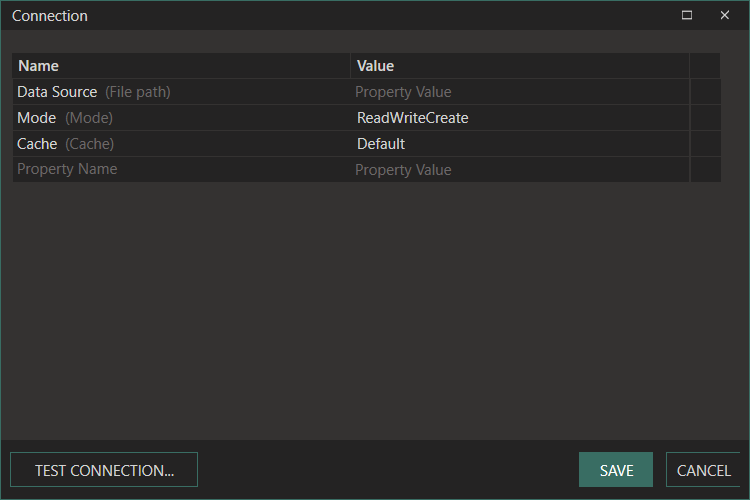

To access the **Connection Editor**, click the **...** icon in the Connection string property.

<div align="left"><img src="/files/FUz4n8h4TWmevfdBZPXY" alt="Connection Editor"></div>

<div align="left"><img src="/files/6ry0viI6vwpRD37lrTFD" alt="Connection Editor"></div>

{% hint style="info" %}
**Note**

* The Connection Editor builds the connection string using a form with the most common properties pre-populated.
* You can add, remove, or rename properties directly in the form.
* Paste an existing connection string into the property field before opening the editor to have it parsed automatically.
  {% endhint %}

Once your connection is set up, you can create and execute SQL queries. See the [SQL Editor](/reference/plugins/database/shared-properties/sql-editor.md) for details.

## Connection string

`Data Source=C:\Data\myapp.db`

| Keyword       | Values                                               | Default           | Description                                                              |
| ------------- | ---------------------------------------------------- | ----------------- | ------------------------------------------------------------------------ |
| `Data Source` | File path or `:memory:`                              | *(required)*      | Absolute path to the `.db` file, or `:memory:` for an in-memory database |
| `Mode`        | `ReadWriteCreate`, `ReadWrite`, `ReadOnly`, `Memory` | `ReadWriteCreate` | Controls how the database file is opened                                 |
| `Cache`       | `Default`, `Private`, `Shared`                       | `Default`         | Enables connection sharing for in-memory databases                       |
| `Timeout`     | Integer (seconds)                                    | `30`              | Maximum time to wait if the database is locked                           |
| `Password`    | Any string                                           | *(none)*          | Requires a SQLCipher-compatible library                                  |

{% hint style="warning" %}
Always use absolute paths in `Data Source` (e.g. `C:\Data\myapp.db`). Relative paths are not supported.
{% endhint %}

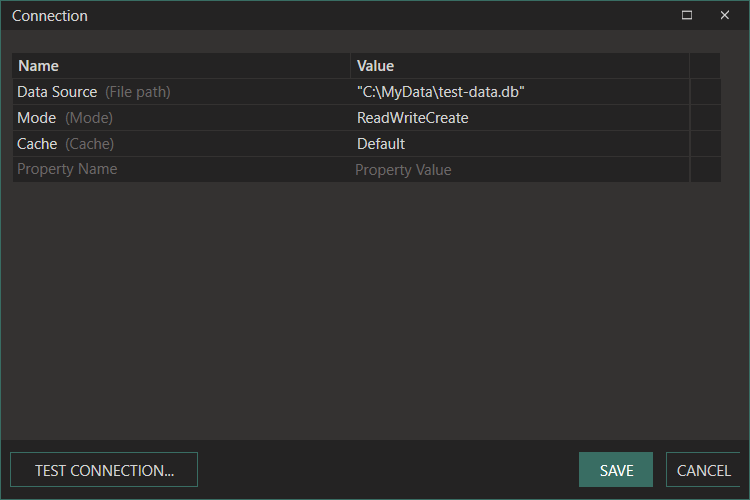

<div align="left"><img src="/files/KnbmnTLrmRvUjfrrhEie" alt="SQLite connection string example"></div>

## Links

* [SQLite connection strings](https://www.connectionstrings.com/sqlite/)
* [Microsoft.Data.Sqlite connection string reference](https://learn.microsoft.com/en-us/dotnet/standard/data/sqlite/connection-strings)


---
